diesel water pumps for irrigation, diesel irrigation pump, diesel self priming pumps, self priming diesel driven pumps, diesel engine driven self priming pump, self priming sewage pump

Product Description

Parameters

Application

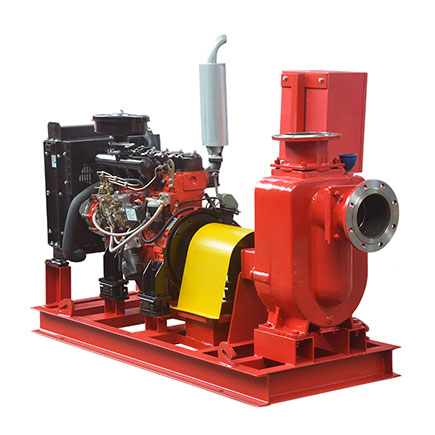

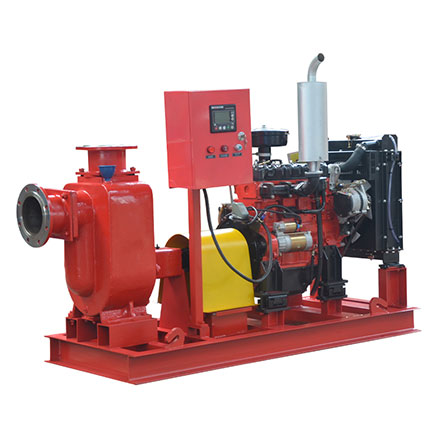

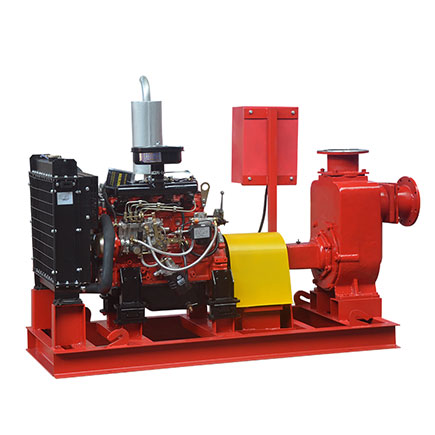

ZWC diesel engine self-priming sewage pump(diesel engine irrigation pump), is a diesel-powered pump. The pump has self-priming function, can transport clean water, rain with sediment, etc. It can be widely used in farmland irrigation, flood prevent, emergency rescue and so on.

Model					Rated Flow			Head	Power	Inlet	Outlet	Diesel engine		Diesel engine speed	Diesel engine power12h		Battert		Connect
Model					m3/h	L/s	gpm	m	kW	mm	mm	Model	Brand	r/min	hp	kw	Set	Volt.	Connect
25	ZWC	6	-	10	6	1.7	26	10	1.1	25	25	178FA	Yanmar	3000	5	3.68	1	12V	Direct
25	ZWC	8	-	12	8	2.2	35	12	1.1	25	25	178FA	Yanmar	3000	5	3.68	1	12V	Direct
25	ZWC	8	-	15	8	2.2	35	15	1.5	25	25	178FA	Yanmar	3000	5	3.68	1	12V	Direct
32	ZWC	8	-	12	8	2.2	35	12	1.1	32	32	178FA	Yanmar	3000	5	3.68	1	12V	Direct
32	ZWC	10	-	15	10	2.8	44	15	1.5	32	32	178FA	Yanmar	3000	5	3.68	1	12V	Direct
32	ZWC	10	-	20	10	2.8	44	20	2.2	32	32	178FA	Yanmar	3000	5	3.68	1	12V	Direct
32	ZWC	20	-	12	20	5.6	88	12	2.2	32	32	178FA	Yanmar	3000	5	3.68	1	12V	Direct
32	ZWC	8	-	22	8	2.2	35	22	2.2	32	32	178FA	Yanmar	3000	5	3.68	1	12V	Direct
40	ZWC	10	-	15	10	2.8	44	15	1.5	40	40	178FA	Yanmar	3000	5	3.68	1	12V	Direct
40	ZWC	10	-	20	10	2.8	44	20	2.2	40	40	178FA	Yanmar	3000	5	3.68	1	12V	Direct
40	ZWC	15	-	30	15	4.2	66	30	3.0	40	40	186FA	Yanmar	3000	8	5.70	1	12V	Direct
50	ZWC	20	-	7	20	5.6	88	7	1.1	50	50	178FA	Yanmar	3000	5	3.68	1	12V	Direct
50	ZWC	10	-	10	10	2.8	44	10	1.1	50	50	178FA	Yanmar	3000	5	3.68	1	12V	Direct
50	ZWC	8	-	12	8	2.2	35	12	1.1	50	50	178FA	Yanmar	3000	5	3.68	1	12V	Direct
50	ZWC	10	-	15	10	2.8	44	15	1.5	50	50	178FA	Yanmar	3000	5	3.68	1	12V	Direct
50	ZWC	10	-	20	10	2.8	44	20	2.2	50	50	178FA	Yanmar	3000	5	3.68	1	12V	Direct
50	ZWC	20	-	12	20	5.6	88	12	2.2	50	50	178FA	Yanmar	3000	5	3.68	1	12V	Direct
50	ZWC	15	-	15	15	4.2	66	15	2.2	50	50	178FA	Yanmar	3000	5	3.68	1	12V	Direct
50	ZWC	15	-	30	15	4.2	66	30	3.0	50	50	186FA	Yanmar	3000	8	5.70	1	12V	Direct
50	ZWC	40	-	15	40	11.1	176	15	4.0	50	50	186FA	Yanmar	3000	8	5.70	1	12V	Direct
65	ZWC	25	-	7	25	6.9	110	7	1.5	65	65	178FA	Yanmar	3000	5	3.68	1	12V	Direct
65	ZWC	20	-	14	20	5.6	88	14	2.2	65	65	178FA	Yanmar	3000	5	3.68	1	12V	Direct
65	ZWC	25	-	10	25	6.9	110	10	2.2	65	65	178FA	Yanmar	3000	5	3.68	1	12V	Direct
65	ZWC	15	-	30	15	4.2	66	30	3.0	65	65	186FA	Yanmar	3000	8	5.70	1	12V	Direct
65	ZWC	25	-	15	25	6.9	110	15	3.0	65	65	186FA	Yanmar	3000	8	5.70	1	12V	Direct
65	ZWC	30	-	10	30	8.3	132	10	3.0	65	65	186FA	Yanmar	3000	8	5.70	1	12V	Direct
65	ZWC	30	-	18	30	8.3	132	18	4.0	65	65	186FA	Yanmar	3000	8	5.70	1	12V	Direct
65	ZWC	25	-	20	25	6.9	110	20	4.0	65	65	186FA	Yanmar	3000	8	5.70	1	12V	Direct
65	ZWC	32	-	25	32	8.9	141	25	5.5	65	65	190FE	Yanmar	3000	14	10.50	1	12V	Direct
65	ZWC	40	-	20	40	11.1	176	20	5.5	65	65	190FE	Yanmar	3000	14	10.50	1	12V	Direct
65	ZWC	20	-	30	20	5.6	88	30	5.5	65	65	190FE	Yanmar	3000	14	10.50	1	12V	Direct
65	ZWC	25	-	40	25	6.9	110	40	7.5	65	65	190FE	Yanmar	3000	14	10.50	1	12V	Direct
65	ZWC	30	-	30	30	8.3	132	30	7.5	65	65	190FE	Yanmar	3000	14	10.50	1	12V	Direct
65	ZWC	40	-	30	40	11.1	176	30	11.0	65	65	QC380Q	Quanchai	3000	27	20	1	12V	Universal Joint
65	ZWC	30	-	40	30	8.3	132	40	11.0	65	65	QC380Q	Quanchai	3000	27	20	1	12V	Universal Joint
65	ZWC	30	-	50	30	8.3	132	50	11.0	65	65	QC380Q	Quanchai	3000	27	20	1	12V	Universal Joint
80	ZWC	40	-	10	40	11.1	176	10	3.0	80	80	186FA	Yanmar	3000	8	5.70	1	12V	Direct
80	ZWC	43	-	13	43	11.9	189	13	3.0	80	80	186FA	Yanmar	3000	8	5.70	1	12V	Direct
80	ZWC	40	-	16	40	11.1	176	16	4.0	80	80	186FA	Yanmar	3000	8	5.70	1	12V	Direct
80	ZWC	65	-	15	65	18.1	286	15	5.5	80	80	190FE	Yanmar	3000	14	10.50	1	12V	Direct
80	ZWC	50	-	20	50	13.9	220	20	5.5	80	80	190FE	Yanmar	3000	14	10.50	1	12V	Direct
80	ZWC	40	-	25	40	11.1	176	25	5.5	80	80	190FE	Yanmar	3000	14	10.50	1	12V	Direct
80	ZWC	65	-	25	65	18.1	286	25	7.5	80	80	190FE	Yanmar	3000	14	10.50	1	12V	Direct
80	ZWC	80	-	15	80	22.2	352	15	7.5	80	80	190FE	Yanmar	3000	14	10.50	1	12V	Direct
80	ZWC	40	-	40	40	11.1	176	40	11.0	80	80	QC380Q	Quanchai	3000	27	20	1	12V	Universal Joint
80	ZWC	50	-	40	50	13.9	220	40	11.0	80	80	QC380Q	Quanchai	3000	27	20	1	12V	Universal Joint
80	ZWC	65	-	35	65	18.1	286	35	11.0	80	80	QC380Q	Quanchai	3000	27	20	1	12V	Universal Joint
80	ZWC	80	-	35	80	22.2	352	35	15.0	80	80	QC380Q	Quanchai	3000	27	20	1	12V	Universal Joint
80	ZWC	40	-	50	40	11.1	176	50	18.5	80	80	QC385Q	Quanchai	3000	31	23	1	12V	Universal Joint
80	ZWC	50	-	60	50	13.9	220	60	22.0	80	80	QC385Q	Quanchai	3000	39	29	1	12V	Universal Joint
100	ZWC	110	-	7	110	30.6	485	7	5.5	100	100	190FE	Yanmar	3000	14	10.50	1	12V	Direct
100	ZWC	80	-	10	80	22.2	352	10	5.5	100	100	190FE	Yanmar	3000	14	10.50	1	12V	Direct
100	ZWC	120	-	7	120	33.3	529	7	7.5	100	100	190FE	Yanmar	3000	14	10.50	1	12V	Direct
100	ZWC	100	-	10	100	27.8	441	10	7.5	100	100	190FE	Yanmar	3000	14	10.50	1	12V	Direct
100	ZWC	100	-	15	100	27.8	441	15	7.5	100	100	190FE	Yanmar	3000	14	10.50	1	12V	Direct
100	ZWC	80	-	20	80	22.2	352	20	7.5	100	100	190FE	Yanmar	3000	14	10.50	1	12V	Direct
100	ZWC	120	-	15	120	33.3	529	15	11.0	100	100	QC380Q	Quanchai	3000	27	20	1	12V	Universal Joint
100	ZWC	100	-	20	100	27.8	441	20	11.0	100	100	QC380Q	Quanchai	3000	27	20	1	12V	Universal Joint
100	ZWC	100	-	25	100	27.8	441	25	15.0	100	100	QC380Q	Quanchai	3000	27	20	1	12V	Universal Joint
100	ZWC	120	-	20	120	33.3	529	20	15.0	100	100	QC380Q	Quanchai	3000	27	20	1	12V	Universal Joint
100	ZWC	100	-	28	100	27.8	441	28	18.5	100	100	QC385Q	Quanchai	3000	31	23	1	12V	Universal Joint
100	ZWC	120	-	25	120	33.3	529	25	22.0	100	100	QC480	Quanchai	3000	39	29	1	12V	Universal Joint
100	ZWC	100	-	30	100	27.8	441	30	22.0	100	100	QC480	Quanchai	3000	39	29	1	12V	Universal Joint
100	ZWC	100	-	35	100	27.8	441	35	30.0	100	100	QC490	Quanchai	3000	62	46	1	12V	Universal Joint
100	ZWC	100	-	40	100	27.8	441	40	30.0	100	100	QC490	Quanchai	3000	62	46	1	12V	Universal Joint
100	ZWC	80	-	60	80	22.2	352	60	37.0	100	100	QC490	Quanchai	3000	62	46	1	12V	Universal Joint
100	ZWC	80	-	80	80	22.2	352	80	45.0	100	100	QC495Q	Quanchai	3000	68	50	1	12V	Universal Joint
125	ZWC	120	-	20	120	33.3	529	20	15.0	125	125	LN490	Lion	1450	29	21	1	12V	Universal Joint
125	ZWC	200	-	15	200	55.6	881	15	15.0	125	125	LN490	Lion	1450	29	21	1	12V	Universal Joint
150	ZWC	145	-	7	145	40.3	639	7	7.5	150	150	LN480	Lion	1450	19	14	1	12V	Universal Joint
150	ZWC	200	-	10	200	55.6	881	10	11.0	150	150	LN490	Lion	1450	29	21	1	12V	Universal Joint
150	ZWC	200	-	15	200	55.6	881	15	15.0	150	150	LN490	Lion	1450	29	21	1	12V	Universal Joint
150	ZWC	200	-	18	200	55.6	881	18	18.5	150	150	LN490Z	Lion	1450	38	28	1	12V	Universal Joint
150	ZWC	200	-	20	200	55.6	881	20	22.0	150	150	LN490Z	Lion	1450	38	28	1	12V	Universal Joint
150	ZWC	200	-	25	200	55.6	881	25	30.0	150	150	4100ZD	Lion	1450	56	41	1	12V	Universal Joint
150	ZWC	150	-	35	150	41.7	661	35	37.0	150	150	4100ZD	Lion	1450	56	41	1	12V	Universal Joint
150	ZWC	250	-	25	250	69.4	1101	25	45.0	150	150	4105ZD	Lion	1450	76	56	1	12V	Universal Joint
200	ZWC	300	-	10	300	83.3	1322	10	18.5	200	200	LN490Z	Lion	1450	38	28	1	12V	Universal Joint
200	ZWC	280	-	14	280	77.8	1233	14	22.0	200	200	LN490Z	Lion	1450	38	28	1	12V	Universal Joint
200	ZWC	400	-	10	400	111.1	1762	10	30.0	200	200	4100ZD	Lion	1450	56	41	1	12V	Universal Joint
200	ZWC	300	-	18	300	83.3	1322	18	37.0	200	200	4100ZD	Lion	1450	56	41	1	12V	Universal Joint
200	ZWC	400	-	15	400	111.1	1762	15	45.0	200	200	4105ZD	Lion	1450	76	56	1	12V	Universal Joint
200	ZWC	280	-	28	280	77.8	1233	28	55.0	200	200	4108ZD	Lion	1450	86	63	1	12V	Universal Joint
200	ZWC	420	-	20	420	116.7	1850	20	55.0	200	200	4108ZD	Lion	1450	86	63	1	12V	Universal Joint
200	ZWC	800	-	14	800	222.2	3524	14	55.0	200	200	4108ZD	Lion	1450	86	63	1	12V	Universal Joint

It can be used for non -power areas of agricultural irrigation, municipal engineering, drought and drainage, the installation of two or four wheel mobile chassis or outdoor rain shell, to adapt to the field of mobile.

Standard Consist and Supply Scope

Diesel engine

To use domestic or imported brand-name diesel engine, but also according to the user's request to use other high-quality diesel engine; generally 4-stroke, closed water-cooled, mechanical or electronic speed, speed 1500r/ min-3000r/min.

Self-priming pump

The self-priming pump, according to customers requirements flow, head or the use of the nature of the requirements, also according to customer's needs to choose other pumps.

Trailer base(with traction)

The base of the diesel water pump unit is welded by heavy steel structure The diesel engine and the water pump are integrated. The heavy steel structure is welded and specially treated to make it work more durable and reliable.

Non-standard composition and scope of supply

Diesel fuel pump unit daily fuel tank, electric pump switch screen, diesel pump unit and electric pump signal interconnection and linkage control.
