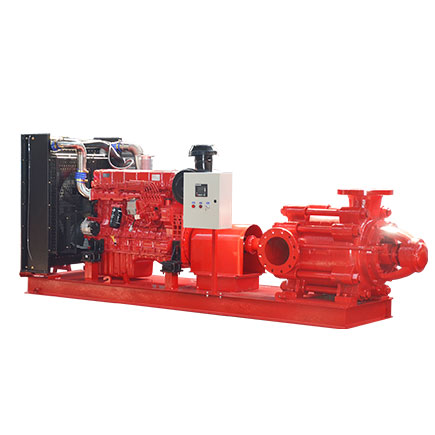

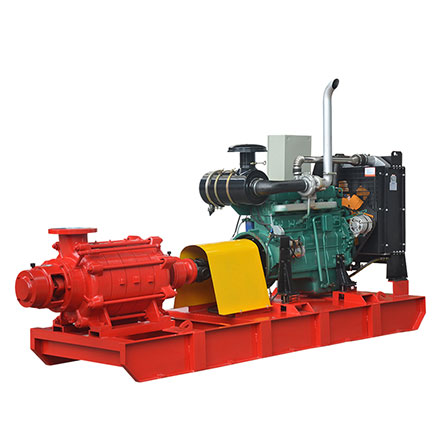

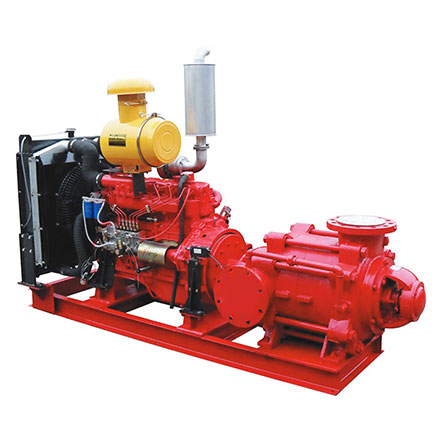

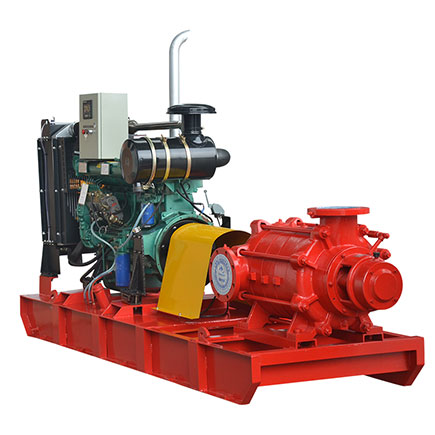

Diesel Engine Multistage Pump, Multistage Fire Pump, multistage pump, multistage high pressure water pump, diesel engine fire pump, diesel engine pump for fire fighting

Product Description

Product Structure

Parameters

Application

Better( China)Technology Co, LTD. manufactured diesel driven fire pump manufactured according to GB6245-2006 fire pump design. Meets the latest certification CCCF requirements and obtain the certificate. The products' advantage is that when there's fire, power failure and the electric fire pump can't work properly, diesel fire pump automatically put into operation to ensure fire fighting normally; Second, compared with the advantages of electric fire pump, diesel engine pump doesn't need long-term investment in power supply, saving electricity supply transformer and normal expenses. Diesel Fire Pump configure various automatic functions to meet the requirements of national standards to ensure the long-term normal standby equipment, ready to work at any time.

The fire fighting pump systems also apply to other emergent and standby occasions.

XBC-D
No.	Model					Pump model	speed	flow		Press			Inlet	Outlet	Diesel engine 12H
No.	Model					Pump model	rpm	L/s	GPM	MPa	m	PSI	mm	mm	kw
1	XBC	10	5	-	D	D25-30×4	2950	5	79	1	100	145	65	65	18.5
2	XBC	11	5	-	D	D25-30×4	2950	5	79	1.1	110	160	65	65	18.5
3	XBC	12	5	-	D	D25-30×4	2950	5	79	1.2	120	174	65	65	18.5
4	XBC	13	5	-	D	D25-30×5	2950	5	79	1.3	130	189	65	65	22
5	XBC	14	5	-	D	D25-30×5	2950	5	79	1.4	140	203	65	65	22
6	XBC	15	5	-	D	D25-30×5	2950	5	79	1.5	150	218	65	65	22
7	XBC	16	5	-	D	D25-30×6	2950	5	79	1.6	160	232	65	65	30
8	XBC	17	5	-	D	D25-30×6	2950	5	79	1.7	170	247	65	65	30
9	XBC	18	5	-	D	D25-30×6	2950	5	79	1.8	180	261	65	65	30
10	XBC	19	5	-	D	D25-50×4	2950	5	79	1.9	190	276	65	65	30
11	XBC	20	5	-	D	D25-50×4	2950	5	79	2	200	290	65	65	30
12	XBC	21	5	-	D	D25-50×4	2950	5	79	2.1	210	305	65	65	30
13	XBC	22	5	-	D	D25-50×5	2950	5	79	2.2	220	319	65	65	37
14	XBC	23	5	-	D	D25-50×5	2950	5	79	2.3	230	334	65	65	37
15	XBC	24	5	-	D	D25-50×5	2950	5	79	2.4	240	348	65	65	37
16	XBC	10	10	-	D	D46-30×4	2950	10	159	1	100	145	80	65	30
17	XBC	11	10	-	D	D46-30×4	2950	10	159	1.1	110	160	80	65	30
18	XBC	12	10	-	D	D46-30×4	2950	10	159	1.2	120	174	80	65	30
19	XBC	13	10	-	D	D46-30×5	2950	10	159	1.3	130	189	80	65	37
20	XBC	14	10	-	D	D46-30×5	2950	10	159	1.4	140	203	80	65	37
21	XBC	15	10	-	D	D46-30×5	2950	10	159	1.5	150	218	80	65	37
22	XBC	16	10	-	D	D46-30×6	2950	10	159	1.6	160	232	80	65	37
23	XBC	17	10	-	D	D46-30×6	2950	10	159	1.7	170	247	80	65	37
24	XBC	18	10	-	D	D46-30×6	2950	10	159	1.8	180	261	80	65	37
25	XBC	19	10	-	D	D46-50×4	2950	10	159	1.9	190	276	80	80	45
26	XBC	20	10	-	D	D46-50×4	2950	10	159	2	200	290	80	80	45
27	XBC	21	10	-	D	D46-50×4	2950	10	159	2.1	210	305	80	80	45
28	XBC	22	10	-	D	D46-50×5	2950	10	159	2.2	220	319	80	80	37
29	XBC	23	10	-	D	D46-50×5	2950	10	159	2.3	230	334	80	80	37
30	XBC	24	10	-	D	D46-50×5	2950	10	159	2.4	240	348	80	80	37
31	XBC	10	15	-	D	D46-30×4	2950	15	238	1	100	145	80	80	30
32	XBC	11	15	-	D	D46-30×5	2950	15	238	1.1	110	160	80	65	37
33	XBC	12	15	-	D	D46-30×5	2950	15	238	1.2	120	174	80	65	37
34	XBC	13	15	-	D	D46-30×5	2950	15	238	1.3	130	189	80	65	37
35	XBC	14	15	-	D	D46-50×3	2950	15	238	1.4	140	203	80	80	37
36	XBC	15	15	-	D	D46-50×3	2950	15	238	1.5	150	218	80	80	37
37	XBC	16	15	-	D	D46-50×4	2950	15	238	1.6	160	232	80	80	45
38	XBC	17	15	-	D	D46-50×4	2950	15	238	1.7	170	247	80	80	45
39	XBC	18	15	-	D	D46-50×4	2950	15	238	1.8	180	261	80	80	45
40	XBC	19	15	-	D	D46-50×4	2950	15	238	1.9	190	276	80	80	45
41	XBC	20	15	-	D	D46-50×5	2950	15	238	2	200	290	80	80	55
42	XBC	21	15	-	D	D46-50×5	2950	15	238	2.1	210	305	80	80	55
MORE SPECIFICATIONS PLEASE CONTACT US.

High-rise hotel, high public places;

High-rise office buildings, high-rise residential;
Chemical, oil refining, metallurgical, enterprises;
Energy, medicine and military, enterprises.

Environmental and Working Conditions

Ambient temperature:
Ambient temperature range 4℃-40℃.
Working to improve the ambient temperature every 5℃, its power decreased by 1%(to 25℃ as the base);
Altitude:
Reference elevation 91.4m, the reference atmospheric pressure is 100KPa;
If the work to an altitude of over 1000m, reference should be corrected GB1105 1-1987 diesel engine power, you can consult the specific technical department;
Relative humidity ≤80% (20℃), outdoor allow 90% (when installed outdoors in the order presented, you can choose to configure the outdoor structure, protection class IP55).

The Scope of Work
Water pressure: 0. 2-2.5MPa (20~250 meters);
Flow range: 5-1200L/S
Power: 3kW~2000kW;
Speed range: 1500~3200r/min
Permissible media: Drinking water, chilled water, fire water, and other impurities without abrasive or long-fiber impurities and no chemical or mechanical pump for corrosive media.
Allow the maximum medium temperature 70℃, the maximum ambient temperature of 40℃;
Maximum allowable working pressure of 1.6MPa, the maximum inlet pressure 0.6MPa.

Model meaning
